產品描述

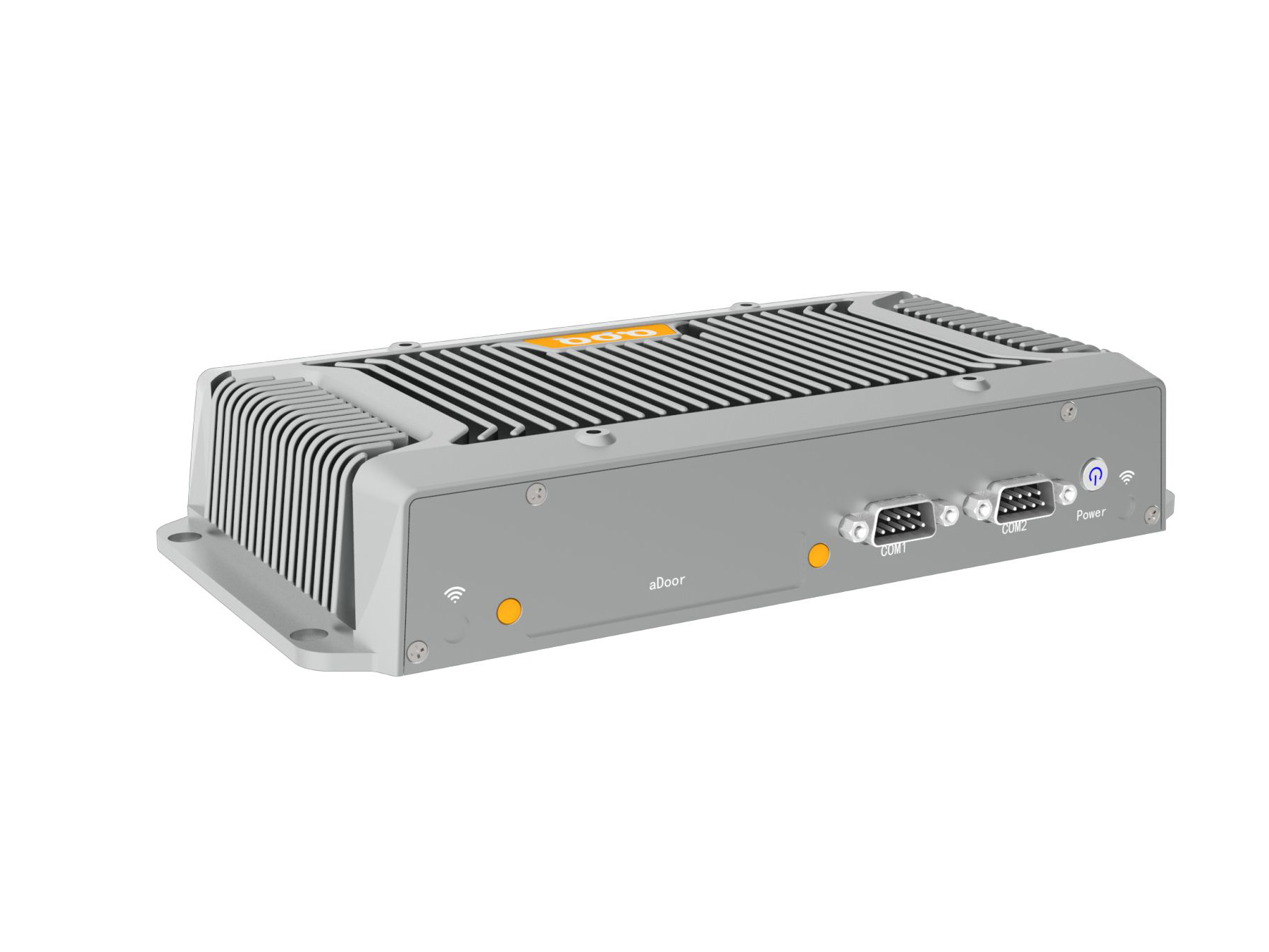

阿普奇嵌入式工控機E5S系列是一款專為工業自動化和邊緣計算應用而設計的超緊湊型工業計算機。采用Intel J6412/N97/N305低功耗四核處理器，高效且穩定，確保流暢運行各類應用。雙千兆網卡為大數據傳輸提供穩定通道，滿足實時通信需求。8GB LPDDR4內存確保流暢的多任務處理，提供高效計算能力。此外，2個板載顯示接口方便實時監控，雙硬盤存儲設計滿足數據存儲需求。該系列還支持WiFi/4G無線擴展，方便實現無線連接和控制，進一步擴展了其應用場景。適應12~28V直流寬壓電源，確保在各種環境下的穩定性。超緊湊的機身設計和無風扇散熱系統使得E5S系列適合更多的嵌入式場景。無論是在狹小的空間內還是在惡劣的環境中，E5S系列都能提供穩定高效的計算支持。
總之，阿普奇E5S系列嵌入式工控機憑借強大的性能和豐富的接口，為工業自動化和邊緣計算提供了堅實后盾，滿足各種復雜應用場景的需求。
|
Model |
E5S |
|||
|
?Processor System |
CPU | Intel??Elkhart Lake J6412 | Intel??Alder Lake N97 | Intel??Alder Lake N305 |
| Base Frequency | 2.00 GHz | 2.0 GHz | 1 GHz | |
| Max Turbo Frequency | 2.60 GHz | 3.60 GHz | 3.8GHz | |
| Cache | 1.5MB | 6MB | 6MB | |
| Total Cores/Threads | 4/4 | 4/4 | 8/8 | |
| Chipset | SoC | |||
| BIOS | AMI UEFI BIOS | |||
|
Memory |
Socket | LPDDR4 3200 MHz (Onboard) | ||
| Capacity | 8GB | |||
|
Graphics |
Controller | Intel??UHD Graphics | ||
|
Ethernet |
Controller | 2 * Intel??i210-AT (10/100/1000 Mbps, RJ45) | ||
|
Storage |
SATA | 1 * SATA3.0 Connector (2.5-inch hard disk with 15+7Pin) | ||
| M.2 | 1 * M.2 Key-M Slot (SATA SSD, 2280) | |||
|
Expansion Slots |
aDoor | 1 * aDoor | ||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe2.0x1+USB2.0) | |||
|

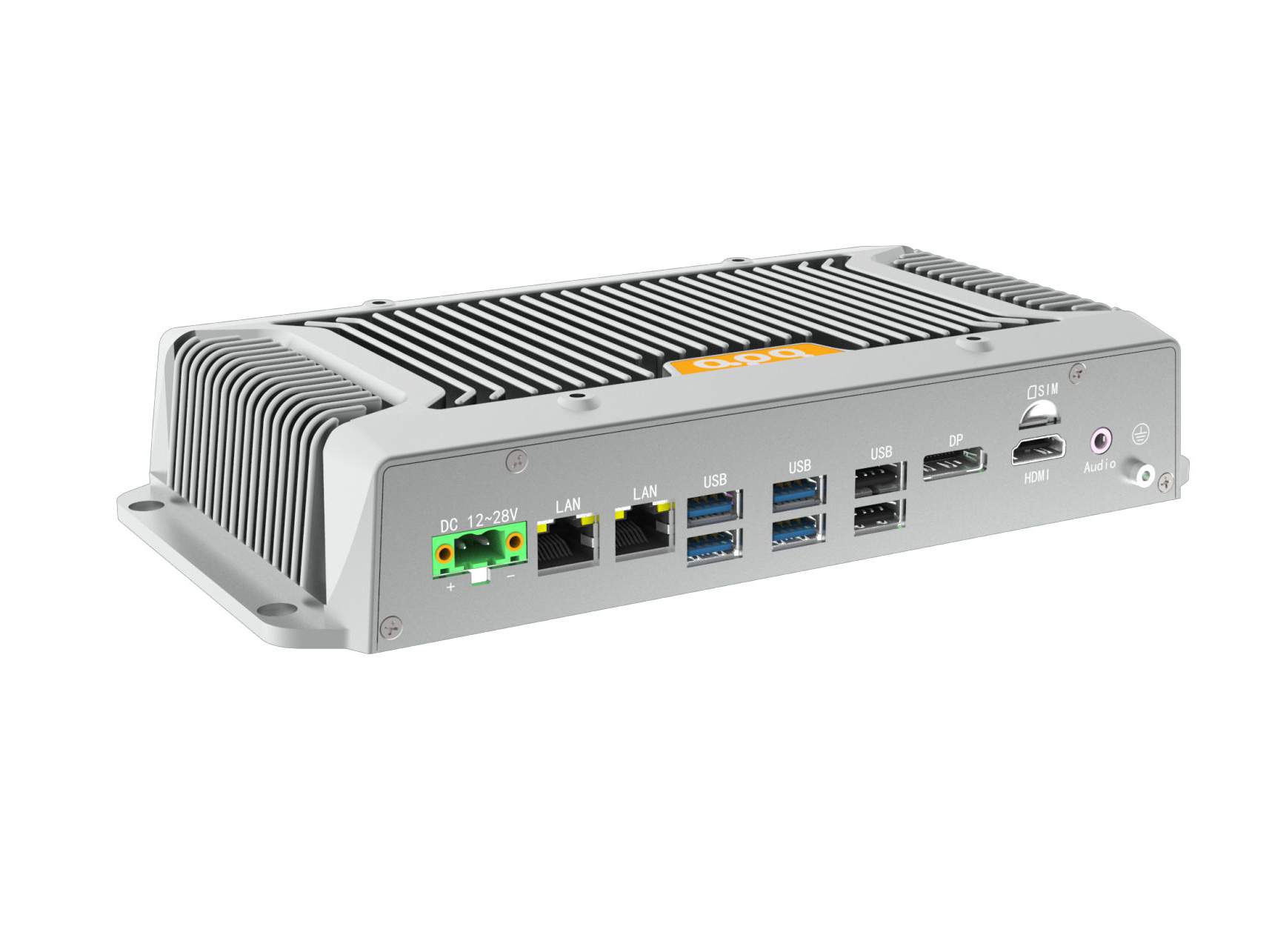

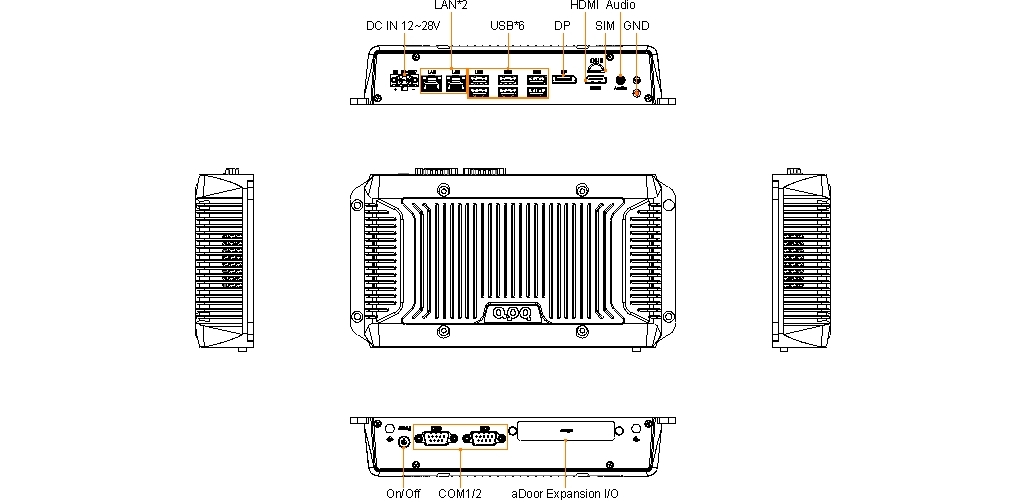

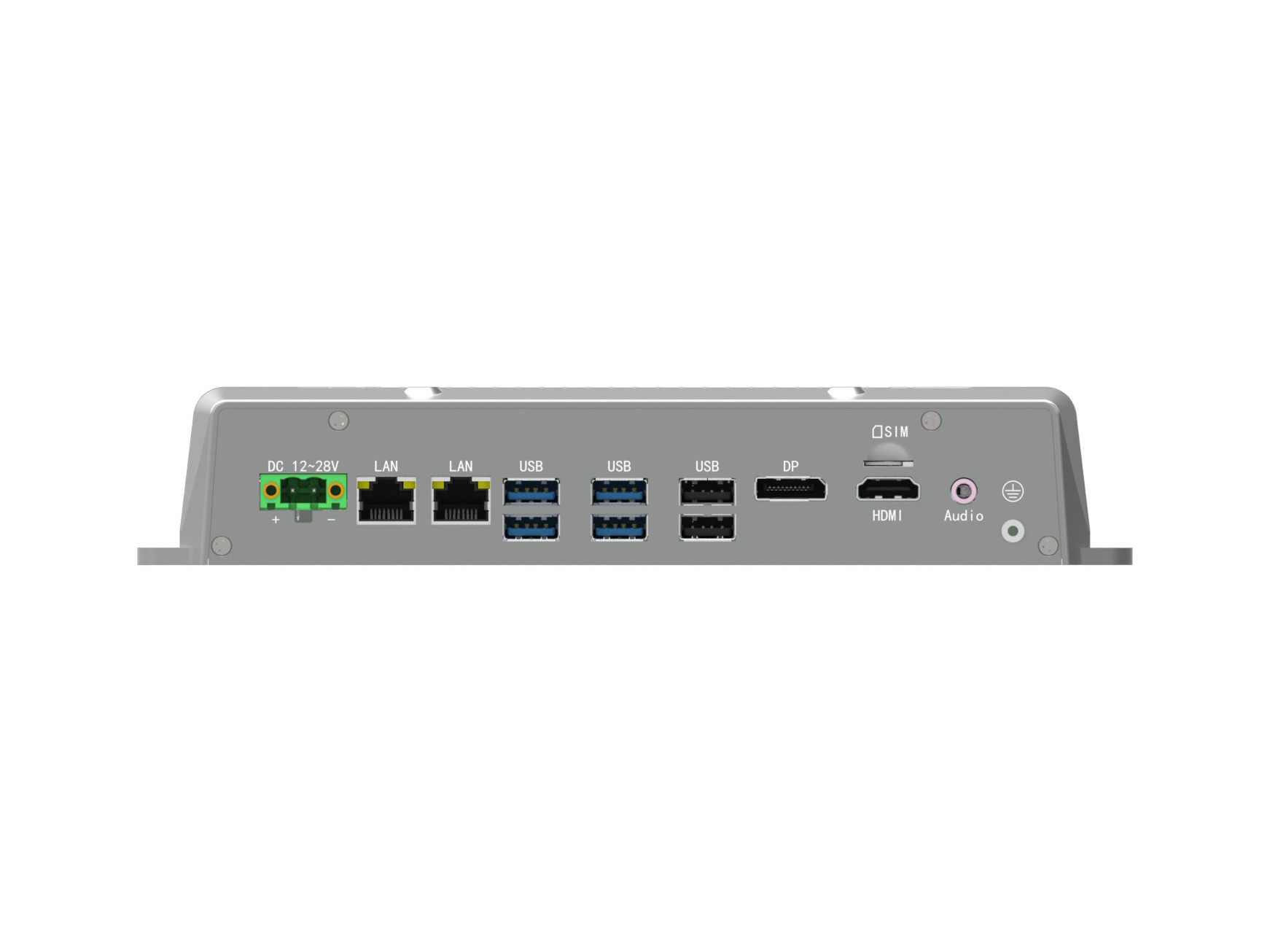

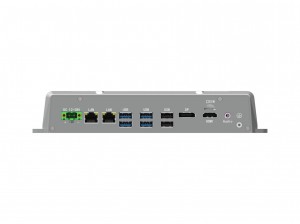

Front I/O |
USB | 4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
||
| Ethernet | 2 * RJ45 | |||
| Display | 1 * DP++: max resolution up to 4096x2160@60Hz 1 * HDMI (Type-A): max resolution up to 2048x1080@60Hz |
|||
| Audio | 1 * 3.5mm Jack (Line-Out + MIC, CTIA) | |||
| SIM | 1 * Nano-SIM Card slot (Mini PCIe module provides functional support) | |||
| Power | 1 * Power Input Connector (12~28V) | |||
|

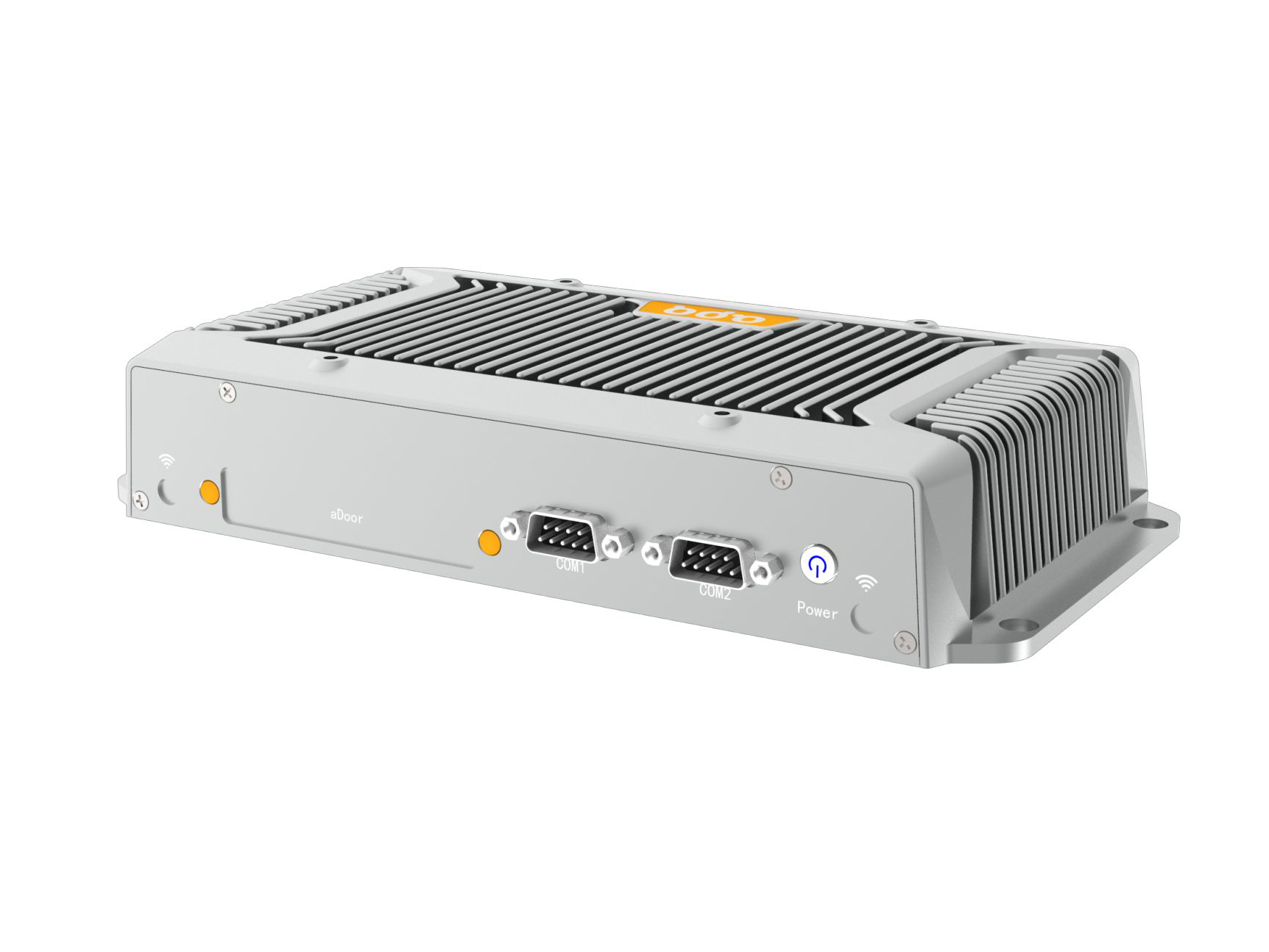

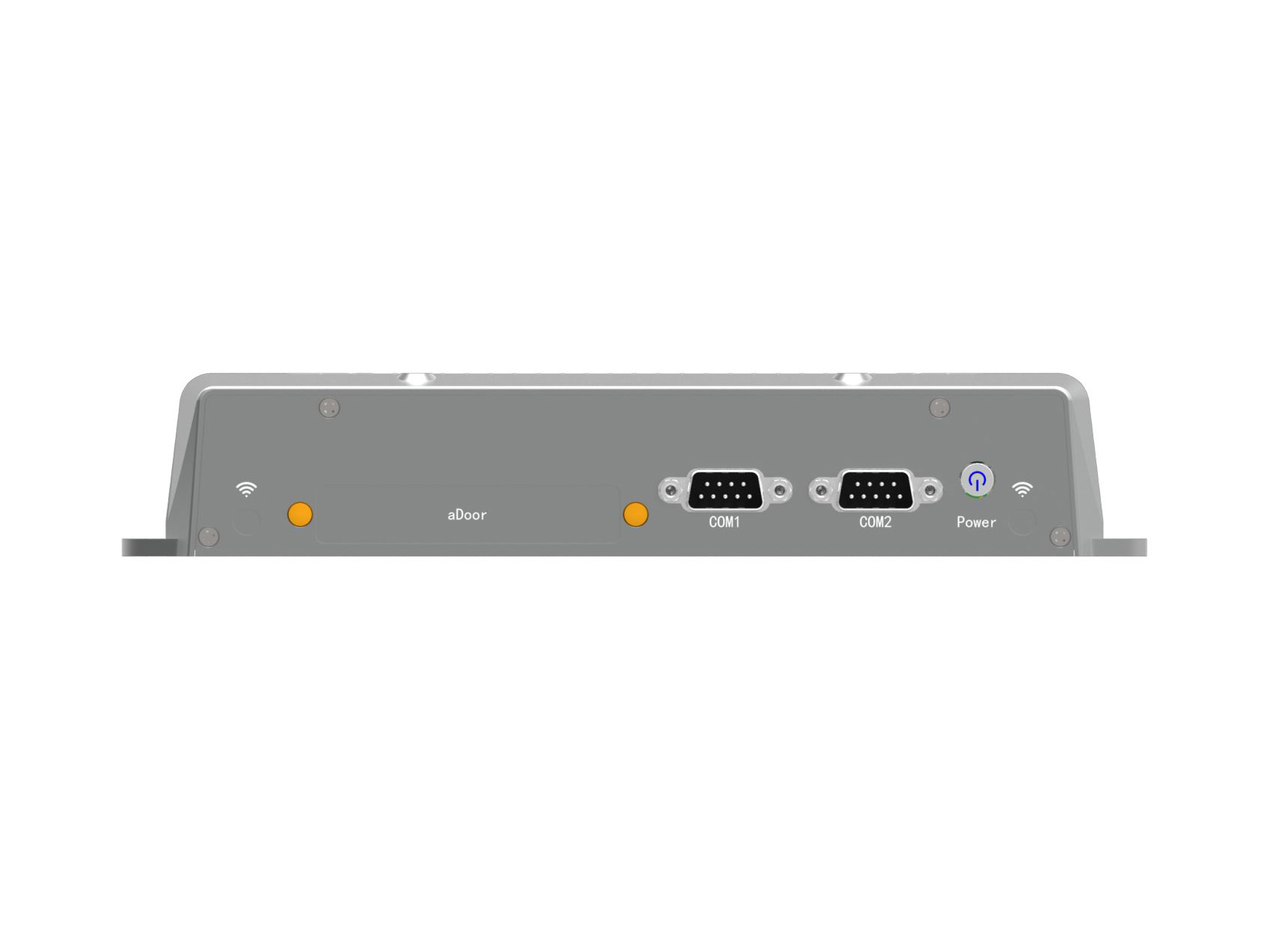

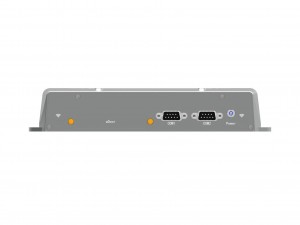

Rear I/O |
Button | 1 * Power Button with Power LED | ||
| Serial | 2 * RS232/485 (COM1/2, DB9/M, BIOS control) | |||
|
Internal I/O |
Front Panel | 1 * Front Panel (3x2Pin, PHD2.0) | ||
| FAN | 1 * SYS FAN (4x1Pin, MX1.25) | |||
| Serial | 2 * COM (JCOM3/4, 5x2Pin, PHD2.0) 2 * COM (JCOM5/6, 5x2Pin, PHD2.0) |
|||
| USB | 2 * USB2.0 (F_USB2_1, 5x2Pin, PHD2.0) 2 * USB2.0 (F_USB2_2, 5x2Pin, PHD2.0) |
|||
| Display | 1 * LVDS/eDP (default LVDS, wafer, 25x2Pin 1.00mm) | |||
| Audio | 1 * Speaker (2-W (per channel)/8-Ω?Loads, 4x1Pin, PH2.0) | |||
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0) | |||
| LPC | 1 * LPC (8x2Pin, PHD2.0) | |||
|
Power Supply |
Type | DC | ||
| Power Input Voltage | 12~28VDC | |||
| Connector | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |||
| RTC Battery | CR2032 Coin Cell | |||
|
OS Support |
Windows | Windows 10/11 | ||
| Linux | Linux | |||
|
Watchdog |
Output | System Reset | ||
| Interval | Programmable 1 ~ 255 sec | |||
|
Mechanical |

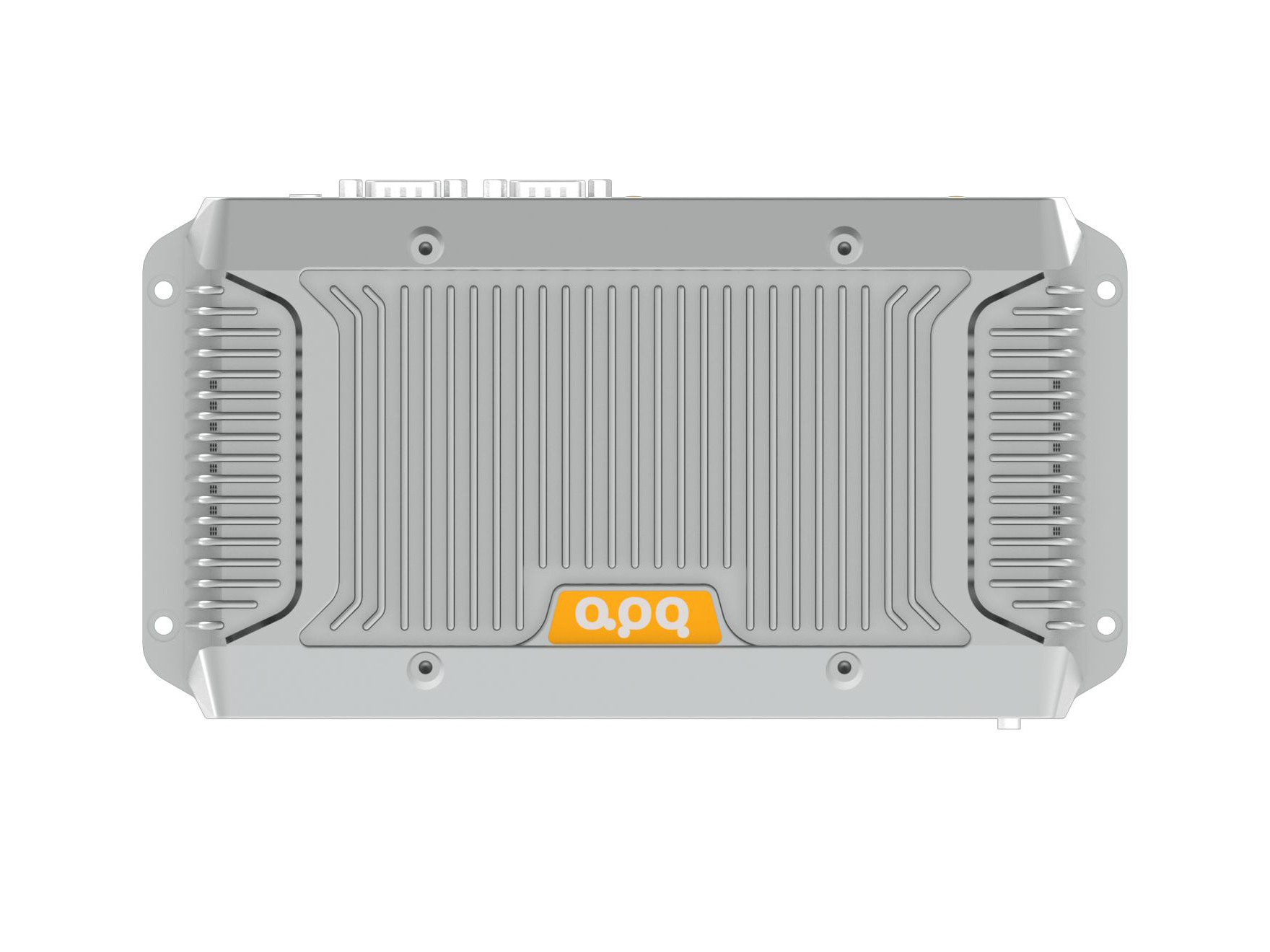

Enclosure Material | Radiator: Aluminum, Box: SGCC | ||

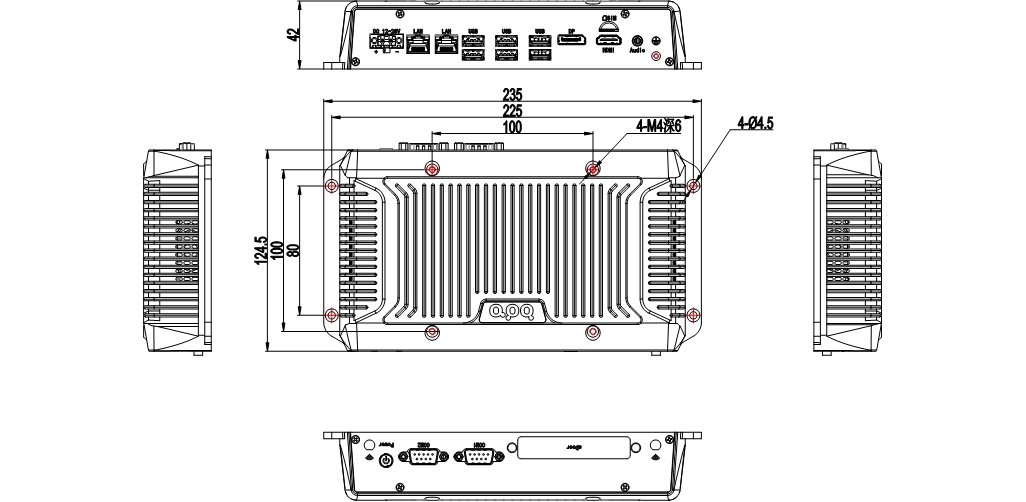

| Dimensions | 235mm(L) * 124.5mm(W) * 42mm(H) | |||
| Weight | Net: 1.2Kg, Total: 2.2Kg (include packaging) | |||
| Mounting | VESA, Wallmount, Desk mounting | |||
|
Environment |

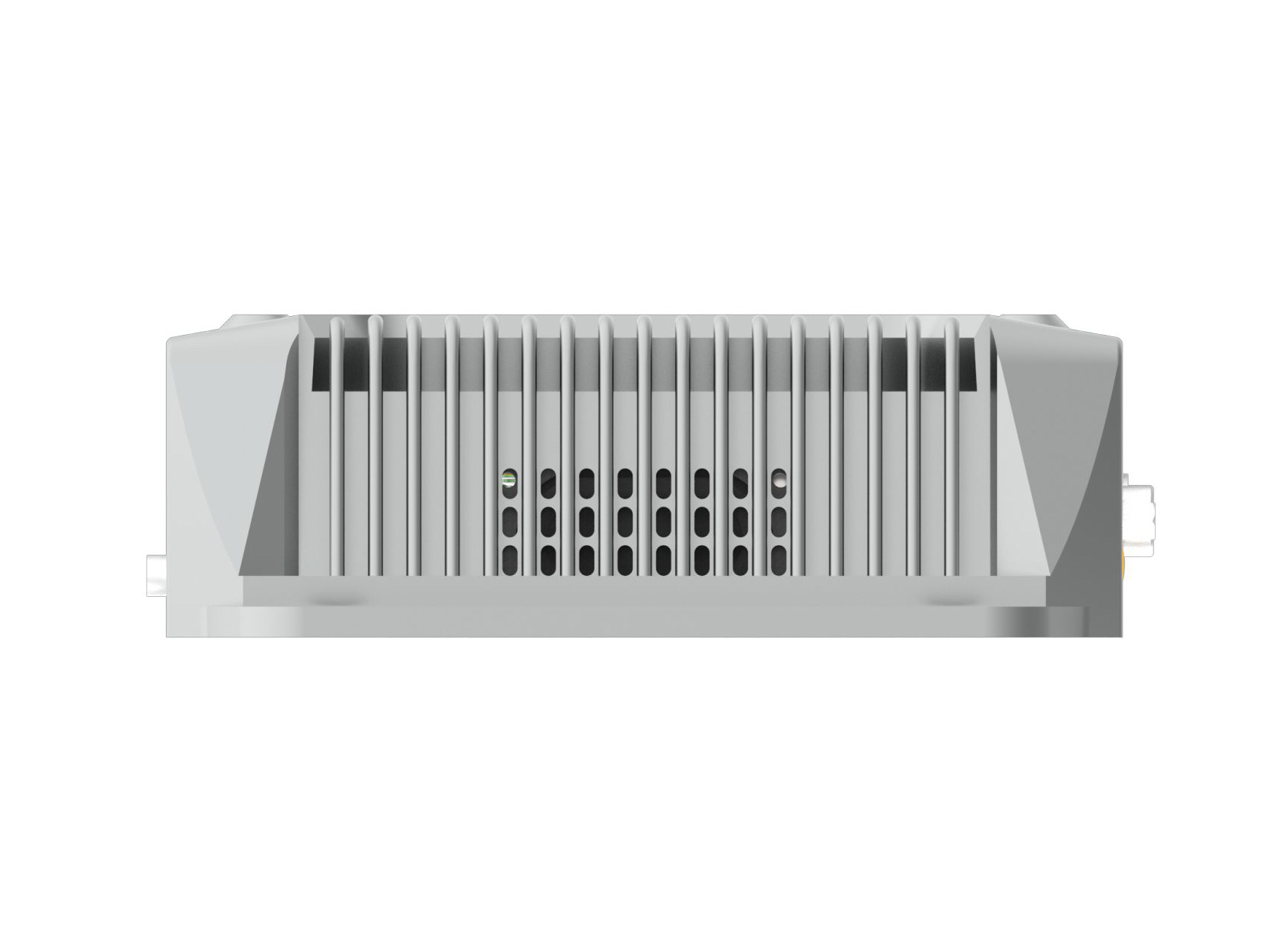

Heat Dissipation System | Passive heat dissipation | ||
| Operating Temperature | -20~60℃ | |||
| Storage Temperature | -40~80℃ | |||
| Relative Humidity | 5 to 95% RH (non-condensing) | |||
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |||
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |||
-
