產品描述

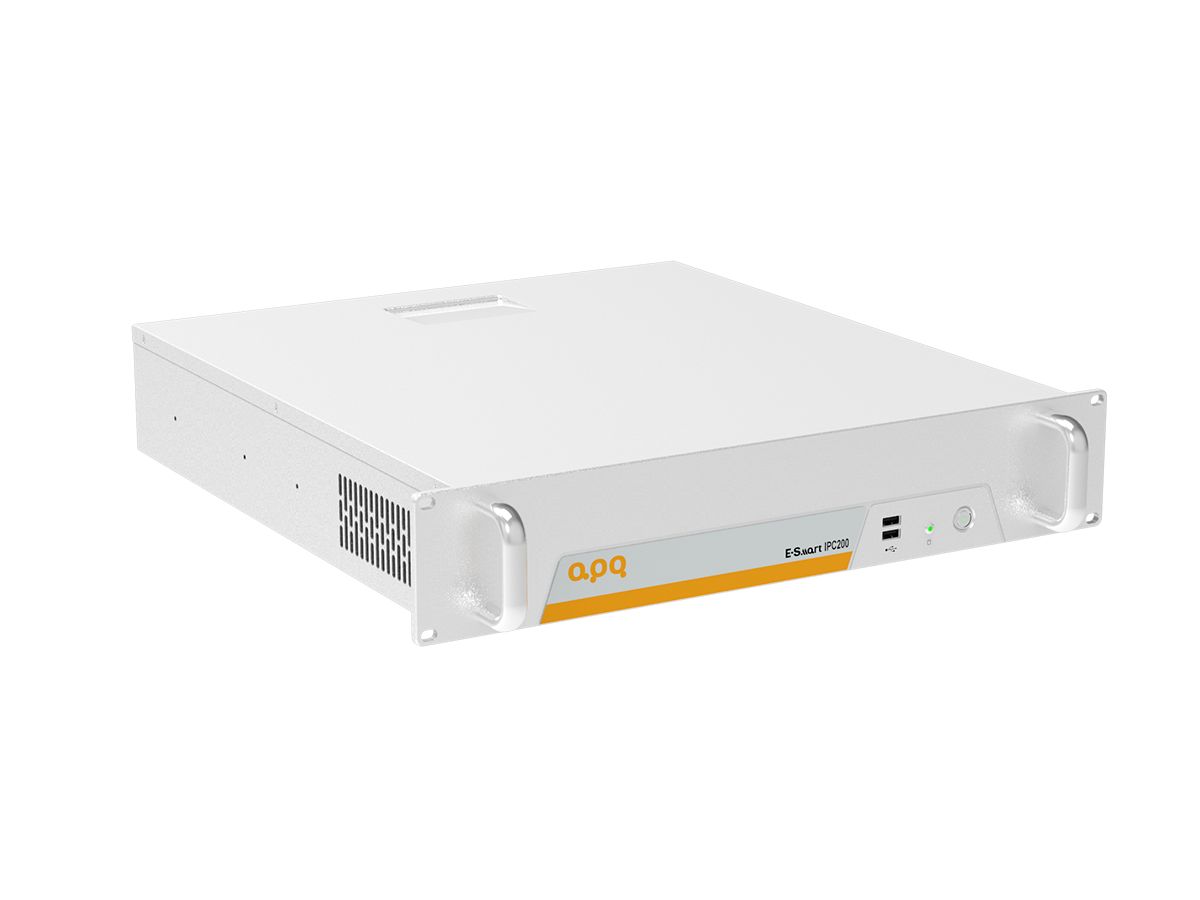

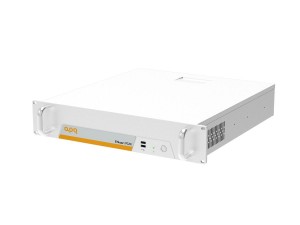

阿普奇2U上架式工控機IPC200-H31C，一款專為工業應用打造的工業計算機，具備一系列卓越的產品特點，確保在各種環境下的穩定運行。首先，IPC200-H31C采用最新的Intel? 6~9th Generation Core/Pentium/Celeron Desktop CPU，為用戶提供強大的計算性能。這使得IPC200-H31C能夠輕松應對各種工業控制和數據處理任務，滿足各種高要求的應用場景。其次，IPC200-H31C采用標準19英寸2U上架式機箱，設計穩固可靠，適合各種機架式系統安裝。此外，設備支持標準ATX主板和2U電源，提供了充足的擴展空間。最多支持7個插槽的半高板卡擴展，滿足各種行業應用的需求。除了強大的硬件配置，IPC200-H31C還注重人性化設計。機箱前置的系統風扇免工具維護，降低了維護成本和時間。這意味著您無需使用額外的工具即可輕松維護設備。同時，最多可選4個3.5英寸抗震抗沖擊硬盤位，為數據存儲提供了穩定的環境。而前面板USB接口、開關機按鈕以及電源及存儲狀態顯示功能，使得系統維護更為便捷。此外，IPC200-H31C還具備出色的可擴展性和靈活性。其多槽位擴展設計可滿足不同應用的需求，并支持多種卡類和接口，適應不同的通信和接口標準。這意味著IPC200-H31C能夠輕松集成到各種工業自動化系統中，實現高效的數據傳輸和控制功能。
總之，阿普奇2U上架式工控機IPC200-H31C憑借其卓越的產品特點和強大的功能，成為工業自動化領域的理想選擇。
|
Model |
IPC200-H31C |
|
|
Processor System |
CPU | Support Intel??6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 65W | |
| Socket | LGA1151 | |
| Chipset | H310C | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2666MHz |
| Capacity | 64GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45) |
| 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) | ||
|
Storage |
SATA | 3 * SATA3.0 7P Connector |
| M.2 | 1 * M.2 Key-M (SATA SSD, SATA 3.0, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 1 * PCIe x16 slot (Gen 3, x16 signal) |
| 1 * PCIe x4 slot (Gen 2, x4 signal, Default, co-lay with Mini PCIe) | ||
| PCI | 5 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0 (Opt., co-lay with PCIe x4 slot), with 1 * SIM Card) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 4 * USB3.2 Gen 1x1 (Type-A) | |
| 2 * USB2.0 (Type-A) | ||
| PS/2 | 1 * PS/2 (Keyboard & Mouse) | |
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz | |
| 1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz | ||
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|
Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED | |
| 1 * Hard drive status LED | ||
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer) | |
| 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | ||
| Audio | 1 * Front Audio (Line-Out + MIC, Header) | |
| 1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | ||
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 3 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| FAN | 2 * SYS FAN (Header) | |
| 1 * CPU FAN (Header) | ||
|
Power Supply |
Type | 2U FLEX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the 2U FLEX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | 6/7th Core?: Windows 7/10/11 |
| 8/9th Core?: Windows 10/11 | ||
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC+AL6061 |
| Dimensions | 482.6mm(L) * 464.5mm(W) * 88.1mm(H) | |
| Mounting | Rack-mounted/Desktop | |
|
Environment |
Operating Temperature | 0 ~ 50℃ |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
