Model |
IPC330D-H110L5 |
|
|
Processor System |
CPU | Support Intel? 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 65W | |
| Socket | LGA1151 | |
| Chipset | H110 | |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | |
|
Memory |
Socket | 2 * DDR4-2133/2400MHz, non-ECC U-DIMM Slot |
| Capacity | Single Max. 16GB | |
|
Graphics |
Controller | Intel? HD Graphics |
|
Ethernet |
Controller | 1 * I219 GBE LAN Chip (10/100/1000 Mbps, RJ45)4 * I210?GBE LAN Chip (10/100/1000 Mbps, RJ45) + 4 * POE Connector
1 * POE Power Connector |
|
Storage |
SATA | 2 * SATA3.0 7P Connector |
| mSATA | 1 * mSATA ( Share slot with Mini PCIe, default) | |
|
Expansion Slots |
PCIe | j:?1 * PCIe?x16k: 2 * PCI
PS:?j、k?One out of two, Expansion card length≤?235mm |
| Mini PCIe | 1 * Mini PCI-E Slot (mSATA/WIFI+4G/3G, default mSATA+4G/3G ), with 1 * Full-Size SIM Card Slot | |
|

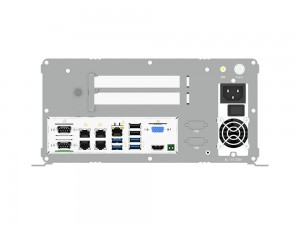

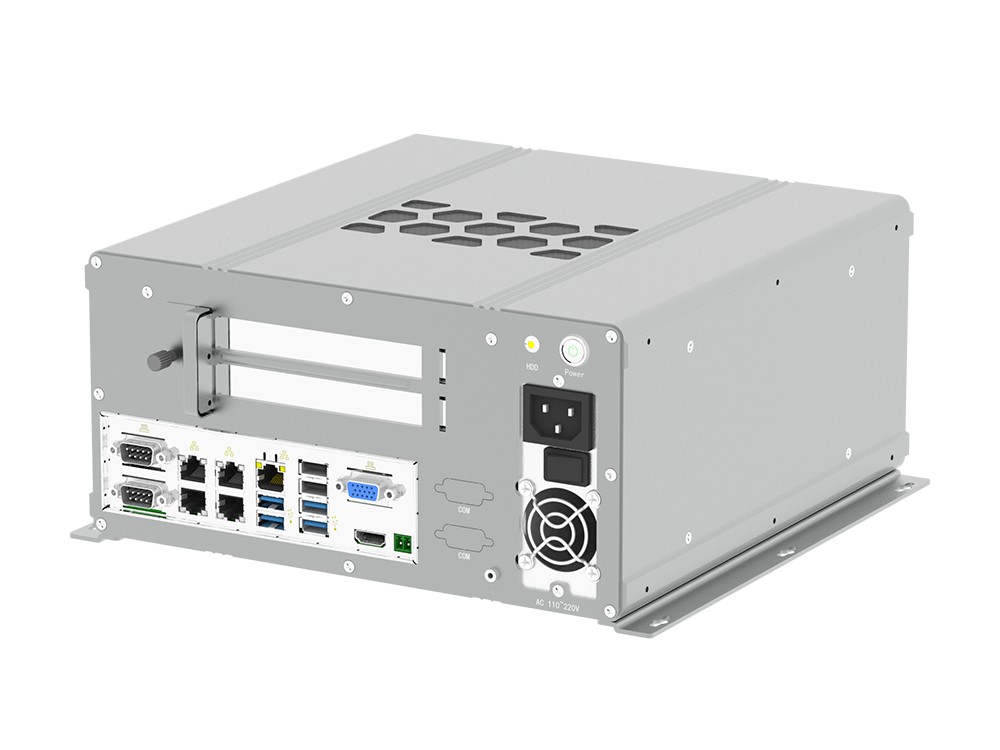

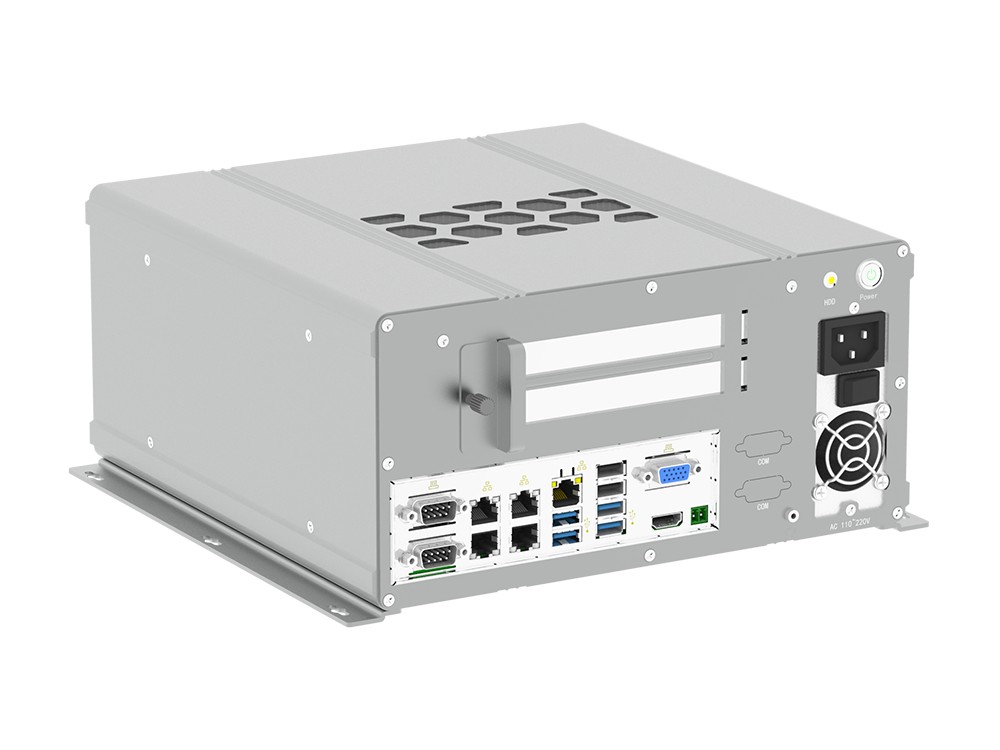

Front I/O |
Ethernet | 5 * RJ45 |
| USB | 4?* USB3.0 2?* USB2.0 |
|
| Display | 1 * VGA(DB15/F): max resolution up to 1920*1200@60Hz1 * HDMI 1.4b(TYPE-A): max resolution up to 4096*2160@24Hz | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M,Jump control) | |
| Button | 1 * Power Button | |
| PWR_SW1 | Remote Power Switch 2P 3.81mm Terminal Block | |
| LED | 1 * Power status LED 1 * Hard drive status LED |
|
|
Internal I/O |
USB | 2 * USB2.0 (Header) |
| COM | 2 * RS232 (COM3/4, Header) | |
| GPIO | 1 * 8 bits DIO (4xDI and 4xDO, wafer) | |
| SATA | 2 * SATA3.0 7P Connector | |
| FAN | 1 * CPU FAN (Header) 1 * SYS FAN (Header) |
|
| Front Panel | 1 * Front Panel (Header) | |
|
Power Supply |
Type | 1U FLEX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the 1U FLEX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows7/8.1/10（8th generation and above CPUs only support WIN10） |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|

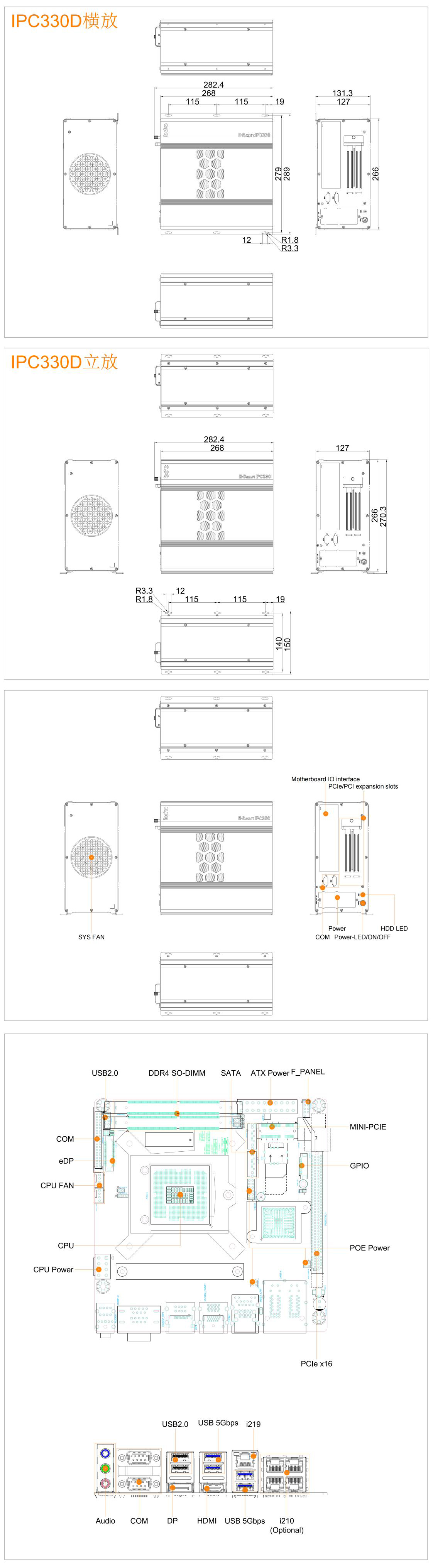

Mechanical |
Enclosure Material | SGCC+AI6061 |
| Dimensions | 266mm * 127mm * 268mm | |
| Mounting | Wall mounted, Desktop | |
|
Environment |

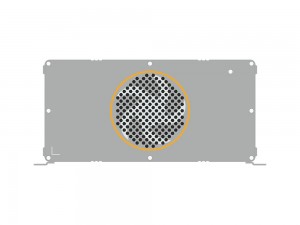

Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 75℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
